The XR150 rotary drilling rig adopts the original imported Cummins
turbocharged engine, which has strong power and sufficient power
reserve to meet plateau construction, and uses engine limit power
control. The self-made chassis with retractable crawlers, H-shaped
frame structure, and the use of enlarged slewing bearings fully
guarantee the stability of the whole machine. The main coil wire
rope is wound in a single layer, which prolongs the service life of
the wire rope. The whole machine can be transported without
dismantling the drill pipe. The application of GPS global satellite
positioning system enables remote data analysis of the working
conditions of the whole machine, and has the functions of remote
real-time monitoring and remote fault diagnosis.

China XCMG Hydraulic Crawler Construction Drilling Machine Rotary Drilling Rig Xr150

XCMG XR series Rotary Drilling Rig is a suitable construction machinery for the construction of the hole, mainly suitable for sand, cohesive soil, silty soil and other soil construction. The drilling rigs generally use hydraulic crawler telescopic chassis, self-landing folding mast, telescopic drill pipe, with vertical degree of automatic detection adjustment and hole digital display, etc. Whole machine operation is generally used hydraulic pilot control and load sensing, easy operation and comfortable.

The main and vice two winchs can meet construction site various requests. This type of drilling rig with different drilling tools for dry (short spiral) or wet (rotary bucket) and rock (core drill) into the hole operation,but also use with a long helix drill, underground wall grab, vibration pile hammer, etc. to achieve a variety of functions, mainly for municipal construction, highway bridges, industrial and civil construction, underground wall, water conservancy, anti-seepage slope and other basic construction.

XCMG provides cost-effective customized services, the solutions and quotations upon receiving your personalized demand.
Engine	Rated power	kW	133
Rotary drive	Max. Output torque	KN . m	150
	Rotary speed	r/min	6~28
Max. Drilling diameter		mm	dia1300,dia1500*
Max. Drilling depth		m	55
Pull-down cylinder	Max. Pull-down piston push	kN	120
	Max. Pull-down piston pull	kN	160
	Max. Pull-down piston stoke	m	3.5
Main winch	Max. Pulling force	kN	144,155*
	Max. Line speed	m/min	75
Auxiliary winch	Max. Pulling force	kN	50
	Max. Line speed	m/min	60
Mast rake side/forwards/backwards			3°/5°/15°
Undercarriage	Max. Traveling speed	Km/h	3.2
	Max. Grade ability	%	40
	Min. clearance	mm	352
	Track shoe width	mm	800,00*
	Distance between tracks	mm	3200~4200,100~4100*
Hydraulic system	Working pressure	Mpa	32
Overall drilling weight		t	47,49*

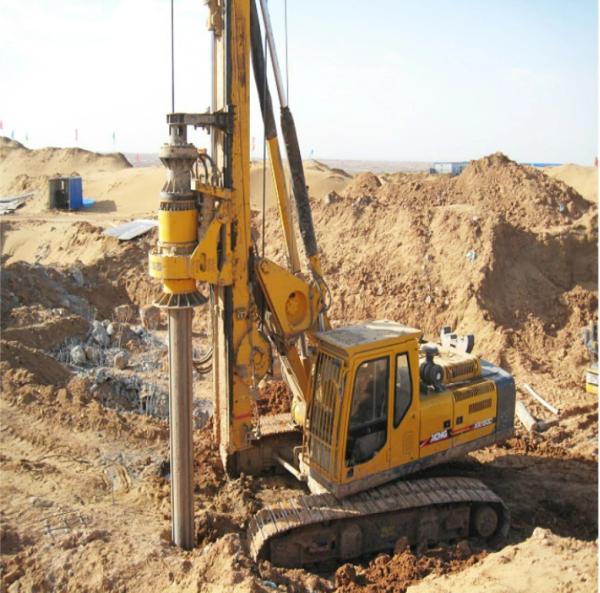

Product Picture

ZZ Technology Industrial Co., Ltd. is a company specializing in the reconditioning and sales of construction machinery, as well as a professional exporter of new and used construction machinery.

ZZ is located in Jinshui District, Zhengzhou City, Henan Province, China. The company has more than 50 employees, ODM maintenance workshop and parking area of ​​30,000 square meters, and annual sales of 10 million US dollars. Its business covers domestic and overseas.

ZZ mainly sells world-renowned brands of rotary drilling rigs, excavators, loaders, and other construction machinery.

ZZ provides construction machinery of brands such as CAT, Komatsu, Hitachi, Kobelco, Shantui, XCMG, Xiagong, Zoomlion, and Sany.

ZZ provides OEM and ODM services, and can customize a suitable rotary drilling rig for you according to your engineering quantity requirements. The rotary drilling chassis, engine, and drill pipe are all well-known brands to ensure reliable and stable quality.

ZZ has a strong pre-sales and after-sales team and a complete large-scale maintenance workshop. Based on these strong supports, our second-hand construction machinery will undergo professional maintenance and strict inspection before export to ensure that each piece of equipment can run well. Support video and on-site detection.
