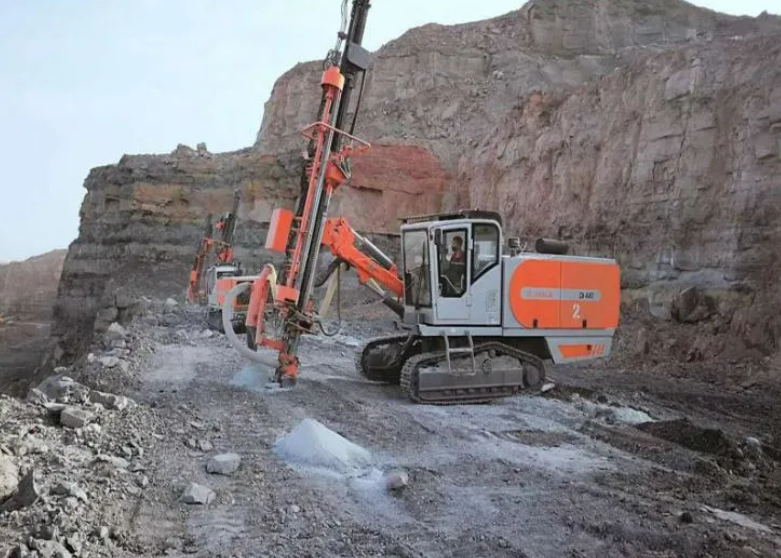

Hydraulic Rotary Bore Mini Piling Rig Driving Machine
Technical Parameters
| Aperture range | Drilling diameter | 90-140mm |
| Drilling depth | 30m | |
| Walking system | Walking speed | 2.5km/h |
| Gradeability | 30° | |
| Slewing head | Gyrator torque | 2800N.m |
| Swing speed | 120rpm | |
| Drill pipe and impactor | Drill pipe | 76*3000 |
| Supporting impactor | 3"4"5" | |
| Propulsion beam | Propulsion route | 3400mm |
| Host rate | Total power | 73.5kw |
| Ground clearance | Ground clearance | 410mm |
| Weight and Dimensions | A5Total Weight | 5800Kg |
| A5ATotal Weight | 5500KG | |
| Weight and Dimensions | 6500×2250×2600mm |
|
|
