Used ZOOMLINE Zr500l Pile Boring Machine Crawler Type
ZOOMLINE Zr500l Pile Boring Machine Application
The Pile Boring Machine is mainly used for piling anchoring, well ,photovoltaic solar rotating pile and water conservancy, power plants, open-air mining, road construction and other stonework blast hole drilling and so on.
Pile Boring Machine using a new hydraulic technology, low consumption, large rotary torque,move the hole and shift the position is convenient.
ZOOMLINE Zr500l Pile Boring Machine Parameters
| Torque(KN.M) | 500 | |
| Drilling Diameter(mm) | 3000/3500 | |
| Drilling Depth(m) | inter-locking | 101 |
| Friction | 122 | |
| Drilling Speed(r/min) | 5.8～22 | |
| Engine Model | QSX15-C600 | |
| Rated Power(kw) | 447 | |
| Max.Crowd Force(kN) | 480 | |
| Max.Crowd Cylinder Pull(kN) | 480 | |
| Line Pull(main winch)(kN) | 600 | |
| Line Speed(main winch)(m/min) | 55 | |
| Line Pull(aux.winch)(kN) | 112 | |
| Line Speed(aux.winch)(m/min) | 60 | |
| Operating Mass(t) | 185 | |
| Traction Force(kN) | 918 | |
| Rope diameter(Main winch)(mm) | 46 | |
| Rope diameter(auxiliary winch)(mm) | 22 | |

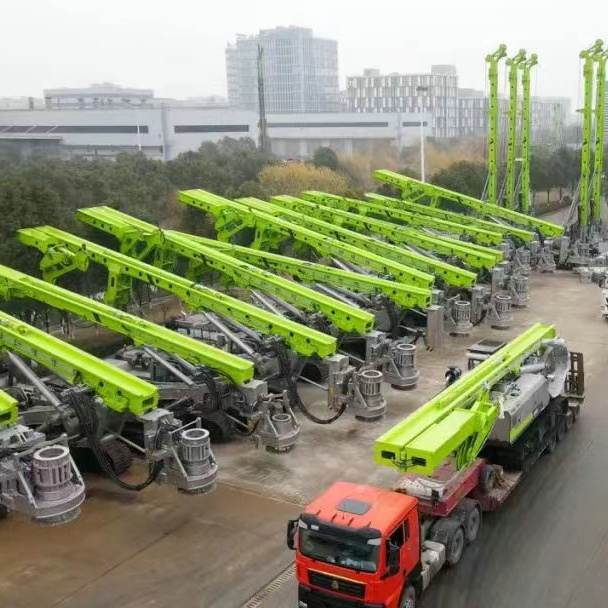

ZOOMLINE Zr500l Pile Boring Machine Pictures
|
|
