| Brand Name : | XCMG |
| Model Number : | XRS1050 |
| Certification : | |
| Price : | Negitionable |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 10 |
| Delivery Time : | 30 days after receiving down payment |

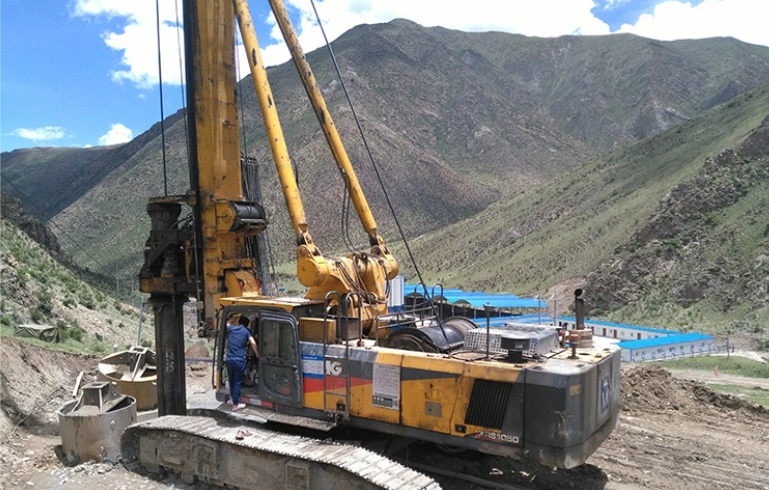

XCMG Official Xrs1050 Big Rig Verticle Drill Machine Rotary
Drilling Rig Price for Sale
Super stability and convenience of transportation, for use the
special hydraulic and telescopic crawling chassis of rotary
drilling rig.
The import engine provides strong power, and the noise and emission
meet Europe III standard.
The design of big trigonal luffing mechanism bring a significant
improvement in stability.
The quality of work is enhanced by increase the mast section to
reduce mechanical wobble of the mast.
Ensure verticality of the hole by add a bracket for drill pipe.
High-performance and more energy-efficient, due to the technology
of load-sensing hydraulic system.
It can be equipped with a variety of drilling tools to realize
drought and wet working.
Description | Unit | Parameter value | |
Max. drilling diameter | mm | 2500 | |
Max. drilling depth | m | 105 | |
Working condition (L × W × H) | mm | 10265×4800×27520 | |
Transport condition (L × W × H) | mm | 17615×3500×3535 | |
Weight of overall unit (standard configuration, excluding drilling
tool) | t | 114 | |
Engine | Model | QSM11-C400 | |
Rated power/speed | kW | 298 | |
Rotary drive | Max. torque | kN.m | 390 |
Rotational speed | r/min | 7~18 | |
Pull-Down Cylinder | Max. pull- down piston push | kN | 240 |
Max. pull- down piston pull | kN | 250 | |
Max. pull- down piston stroke | m | 6 | |
Main Winch | Max. pulling force | kN | 400 |
Max. line speed | m/min | 60 | |
Auxiliary Winch | Max. Pulling force | kN | 100 |
Max. line speed | m/min | 65 | |
Undercarrige | Max. traveling speed | km/h | 1.2 |
Max. grade ability | % | 35 | |
Min. Clearance | mm | 445 | |
Track shoe width | mm | 800 | |
Distance between tracks | mm | 3500~4800 | |
Hydraulic System | Working pressure | Mpa | 35 |
|
|
